Fire Resistant Furnace Corundum Brick Fused Cast Alumina Block Al2O3 94%

Rating:
Get Quotation
X

Contact Seller

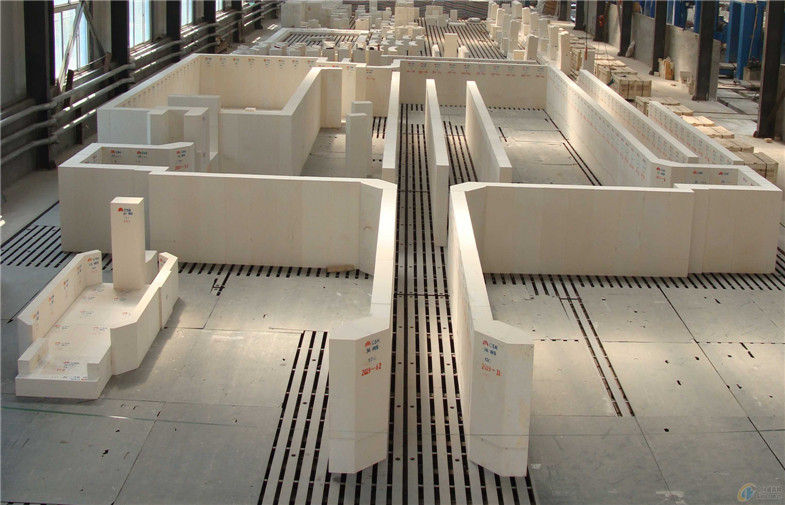

Fire Resistant Brick Fused Cast Alumina Block  For Glass Furnace Working Tanks





Quick Detail:



♦ Compact microstructure
♦ Good erosion resistibility to molten glass
♦ Good thermal shock resistibility
♦ Barely rendering blister





Application:



1. α-β-Al2O3 TY-M has no contamination to glass melt,dense structure,excellent corrosion resistance of glass melt below 1350°C. It is the ideal refractory materials for channels, spouts and working ends of floating glass furnace.



2. β-Al2O3 TY-H has high temperature,better alkali resistance and excellent thermal stability measuration.It is a new refractory material of float glass furnace of breast wall,Port mouth and top Crown.



3.  α-Al2O3 TY-A :The typical glass contact materials for the end zones of furnaces (working-end, feeder channels) when glass quality is the priority : TV Glass, high quality container glass, float glass.





 physical and chemical index:



Item

Unit

Behaviors

FUSED CAST Alumina

RS-M

RS-H

RS-A

Chemical Composition

Al2O3



%

94

93

98.5

SiO2

≤

1

1

0.4

NaO2

4

6.5

0.9

Crystallographic

a-Al2O3





44

0

90

b-Al2O3





55

99

4

Vitreous Phase





1

1

6
