Iron Industrial Electric Furnace Bricks Coke Oven Silica Brick Of High Temperature

Rating:
Get Quotation
X

Contact Seller

Iron Industrial Electric Furnace Bricks , Coke Oven Silica Brick Of High Temperature

Specifications

Silica brick for coke oven silica brick for glass kiln


silica bricks for coke oven

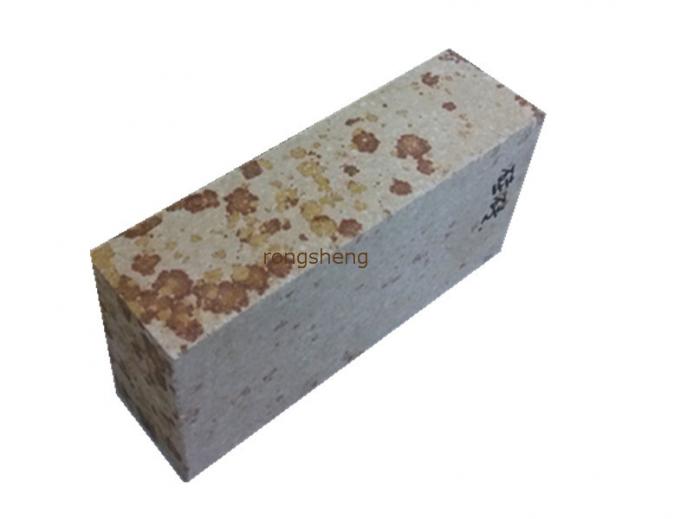

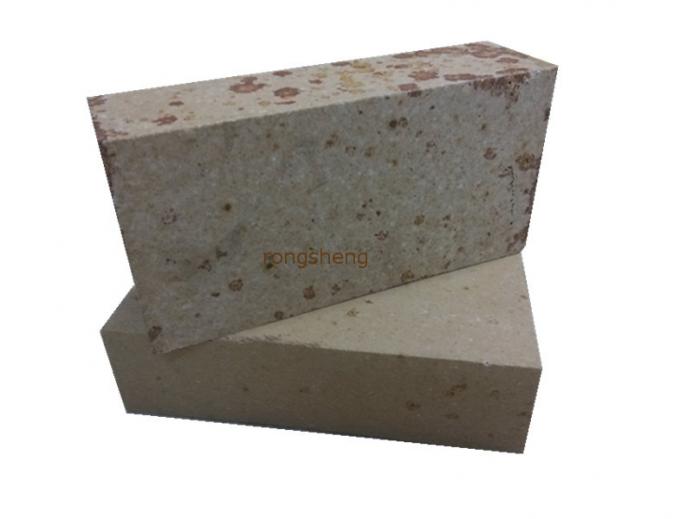

silica brick is made of quartz stone material, the content of SiO2 is above 93%,it has good resistance to acid slag and good heat conductivity. And the refractoriness is 1690~1710°C,RUL is beyond 1620°C.
SiO2 has different types of crystals in different temperatures, and the transform between the crystals will cause the change of the bulk. So there is a close contact between the changes of SiO2 crystals and the  produce ,performance and usage of silica bricks. During the heating, there will be changes of the bulk ,and cristobalite changes most, then quartz, phosphorus quartz is the slowest of all and it also has good heat-conductivity.Coke oven should use the silica brick with small true density. And the phosphorus quartz is better than others.



silica brick for glass kiln
Mainly used for coke oven of coking chamber and combustion chamber partition, steel open hearth of regenerative chamber and sediment chamber, soaking furnace, glass melting furnace, refractory silica brick materials and ceramic firing kiln and kiln of the vault and other supporting parts. Also used in hot blast stove of high temperature bearing parts and acid open hearth furnace roof.


Silica brick application:
Mainly used in the construction of regenerative chamber, chute, combustion chamber, coking chamber, furnace roof etc. parts of the coke ovens.


Specifications:

Physical and Chemical Indicators:


Item

Silica brick for coke oven

Silica brick for glass kin

Furnace bed

others

BG-96A

BG-96B

BG-95A

BG-95B

SiO2% ≥

94

96

96

95

95

Fe2O3 %≥

/

0.8

1.0

1.2

1.2

0.2MPa RUL°C ≥

1650

1680

1670

1660

1650

FUSION INDES:
one BRICK<20kg
one BRICK ≥20kg


/

0.5
0.6


/

0.7
0.7


/

True density g/cm3  ≤

 2.34       2.35

2.34

PLC % 1450°C×2h

+0.2        0

/

AP % ≤

22(23)

24

22(24)

Thermal expansion  1000°C % ≤

1.28

1.30

/

CCS  MPa ≥
one brick<20kg
one brick≥20kg

30

25

35(30)
30(25)


Competitive Advantage:


  1. Competitive Price. Make the products competitive in your market.
  2. Abundant Experience. Prevent cracks and twist in bricks.
  3. Different Moulds. Save mould fees for you.
  4. Strict Quality Control. Meet clients’ quality requirement.
  5. Large stocks. Guarantee prompt delivery.
  6. Professional Packing. Avoid damage and secure the goods in transportationIron Industrial Electric Furnace Bricks , Coke Oven Silica Brick Of High TemperatureIron Industrial Electric Furnace Bricks , Coke Oven Silica Brick Of High Temperature
