Wear Resistance High Alumina Brick Insulating Fire Brick For Steel Plant / Steel Ladle

Rating:
Get Quotation
X

Contact Seller

Al2O3: 75% Bulk Density: 2.5g/cm3
Refractoriness: 1790℃ 0.2 Mpa Refractory Under Lpad: 1550℃
Apparent Porosity: 20% Cold Crushing Strenghth: 60 Mpa
Name: Lightweight Fire Brick



Wear Resistance High Alumina Brick / Heat Resistant Bricks For Hot Blast Furnace



 Features:



High Alumina Bricks are produced with selected bauxite as main raw material, fired at 1450-1470 °C by advanced process with strict quality control. High Alumina bricks have great features like high temperature performance, great corrosion and wear resistance, high bulk density, low iron content, etc.High Alumina bricks are extensively used in mining, metallurgy, cement, chemical and refinery industries. These bricks are also used in all kinds of industrial furnace and high temperature areas to prolong the lives of furnace.



Application:



1, Different high temperature kiln, such as cement kiln

2, Used as insulating layer

3, Hot blast furnace

4, Electric boiler

5, Rotary Kiln



Advantage:



1, Cheaper price compared with other refractory bricks

2 ,Most widely application

3, Size can be made according to requirements



Phycial and Chemical Index:



Index Product LZ-48 LZ-55 LZ-65 LZ-70 LZ-75 LZ-80 LZ-85
Al2O3 % ≥48 ≥55 ≥65 ≥70 ≥75 ≥80 ≥85
Fe2O3 % ≤2.5 ≤2.5 ≤2.0 ≤2.0 ≤2.0 ≤2.0 ≤1.8
Refractoriness °C 1760 1760 1770 1770 1770 1790 1790
Apparent porosity % ≤23 ≤23 ≤23 ≤23 ≤23 ≤22 ≤22
Bulk density g/cm3 2.30 2.35 2.40 2.40 2.45 2.68 2.75
Refractoriness under load 0.2MPa°C 1420 1470 1500 1510 1520 1530 1550
Cold crushing strength MPa 45 45 50 60 60 70 70
Permanent linear change % 1500°C×2h +0.1~-0.4 +0.1~-0.4 +0.1~-0.4 +0.1~-0.4 +0.1~-0.4 +0.1~-0.4 +0.1~-0.4

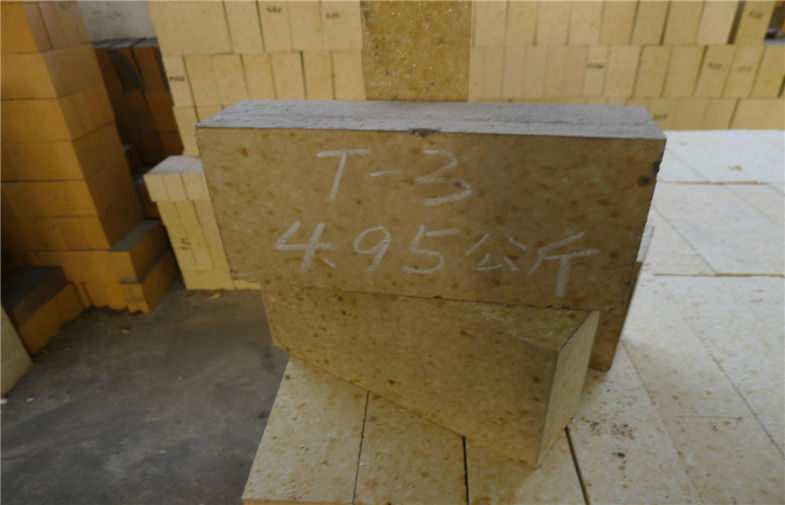

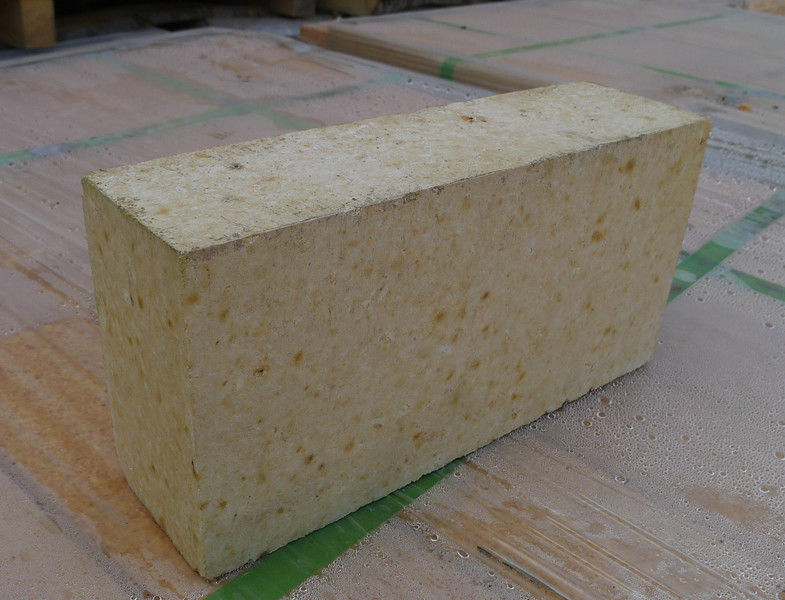

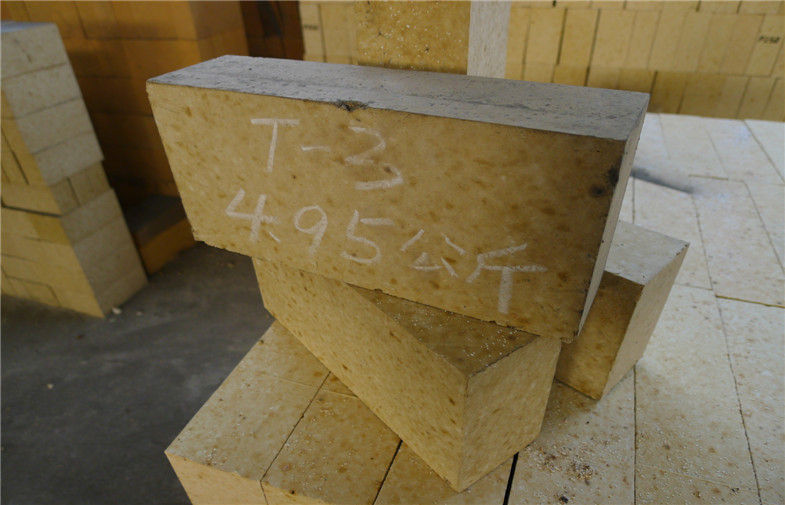

Product Pictures:



Wear Resistance High Alumina Brick , Insulating Fire Brick For Steel Plant / Steel LadleWear Resistance High Alumina Brick , Insulating Fire Brick For Steel Plant / Steel Ladle

Wear Resistance High Alumina Brick , Insulating Fire Brick For Steel Plant / Steel LadleWear Resistance High Alumina Brick , Insulating Fire Brick For Steel Plant / Steel Ladle
